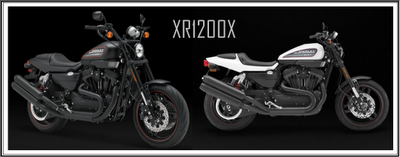

Harley Davidson XR1200X Specifications
Harley Davidson XR1200X Specifications
ENGINE
- Engine : Air-cooled, Evolution
- Bore : 88.9 mm
- Stroke : 96.8 mm
- Displacement : 1,202 cc
- Compression Ratio : 10.0:1
- Fuel System : Electronic Sequential
- Port Fuel Injection (ESPFI)
DIMENSIONS
- Length : 2,225 mm
- Seat Height, Laden :742 mm
- Seat Height, Unladen : 795 mm
- Ground Clearance : 150 mm
- Rake (steering head) (deg) :
- 28.9Trail132 mm
- Wheelbase : 1,515 mm
- Tires, Front Specification :120/70ZR18 59W
- Tires, Rear Specification : 180/55ZR17 73W
- Fuel Capacity : 13.3 l
- Oil Capacity (w/filter) : 2.6 l
- Weight, As Shipped : 250 kg
- Weight, In Running Order : 260 kg
- Luggage Capacity -Volume : N/A
- Luggage Capacity -Weight :N/A
DRIVETRAIN
- Primary Drive : Chain, 57/34 ratio
- Gear Ratios (overall) 1st : 10.782
- Gear Ratios (overall) 2nd : 7.702
- Gear Ratios (overall) 3rd : 5.728
- Gear Ratios (overall) 4th : 4.748
- Gear Ratios (overall) 5th : 4.071
- Gear Ratios (overall) 6th : N/A
CHASSIS
- Exhaust : Black, upswept, straight-shot high-performance exhaust with dual mufflers
- Wheels, Optional Style Type : N/A
- Wheels, Front Type : Black, 3-spoke cast aluminum with orange pinstripe
- Wheels, Rear Type : Black, 3-spoke cast aluminum with orange pinstripe
- Brakes, Caliper Type : Dual 4-Piston, fixed front, single-piston floating rear
- Parking Brake : N/A
PERFORMANCE
- Engine Torque Testing Method : EEC/95/1
- Engine Torque : 100 Nm
- Engine Torque (rpm) : 3,700
- Lean Angle, Right (deg.) : 39
- Lean Angle, Left (deg.) : 40
- Fuel Economy : Combined City/Hwy5.3 l/100 km
ELECTRIC
- Lights (as per country regulation), Indicator Lamps : High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warnings, low battery, security system (optional)
- Gauges : Uniquely-styled, handlebar-mounted, compact digital speedometer and large, analog tachometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout
